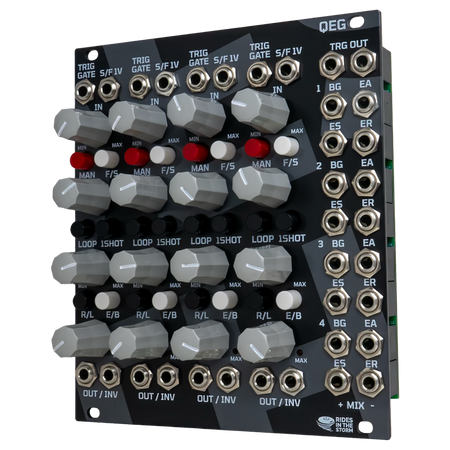

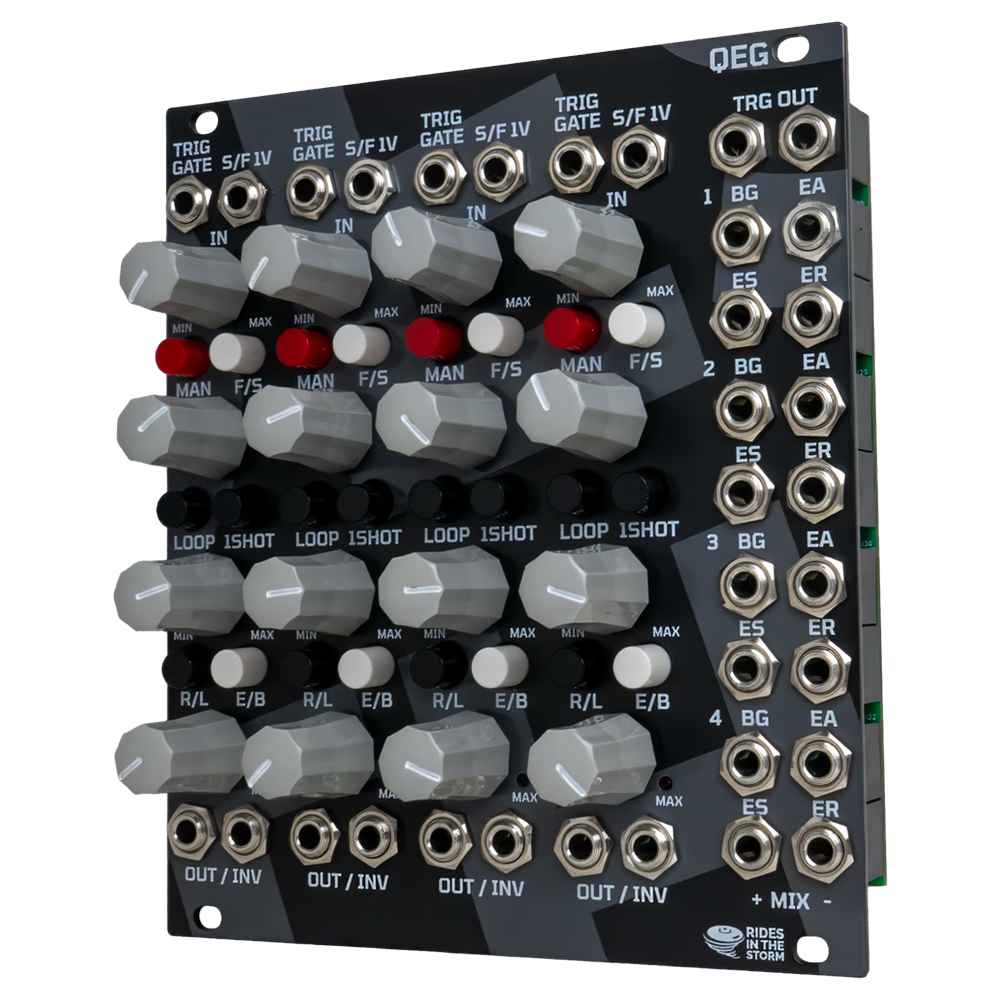

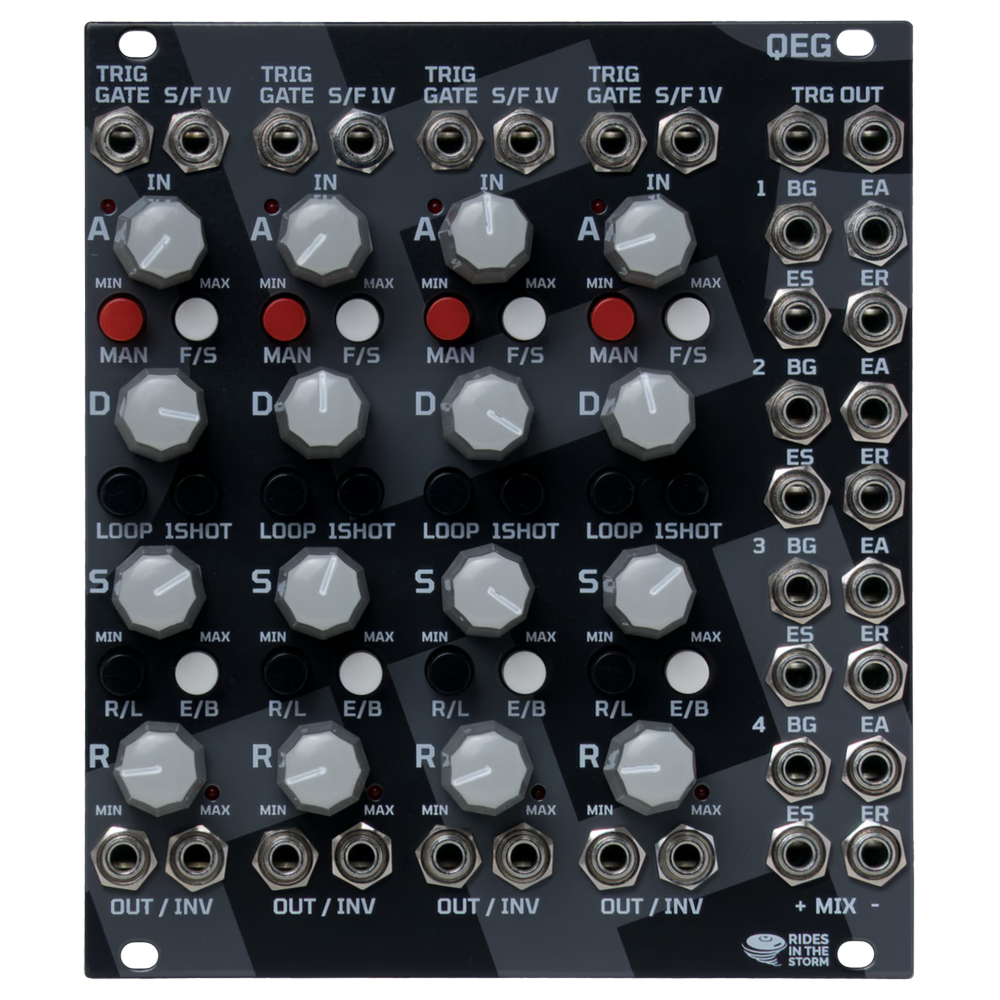

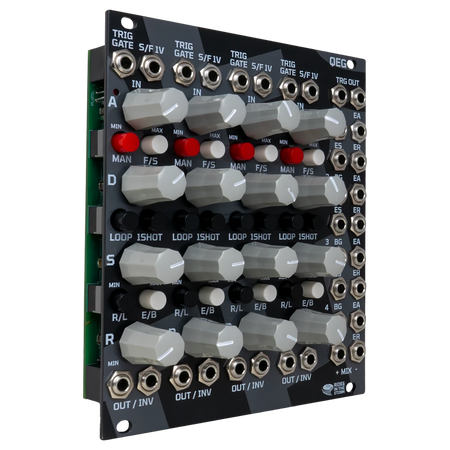

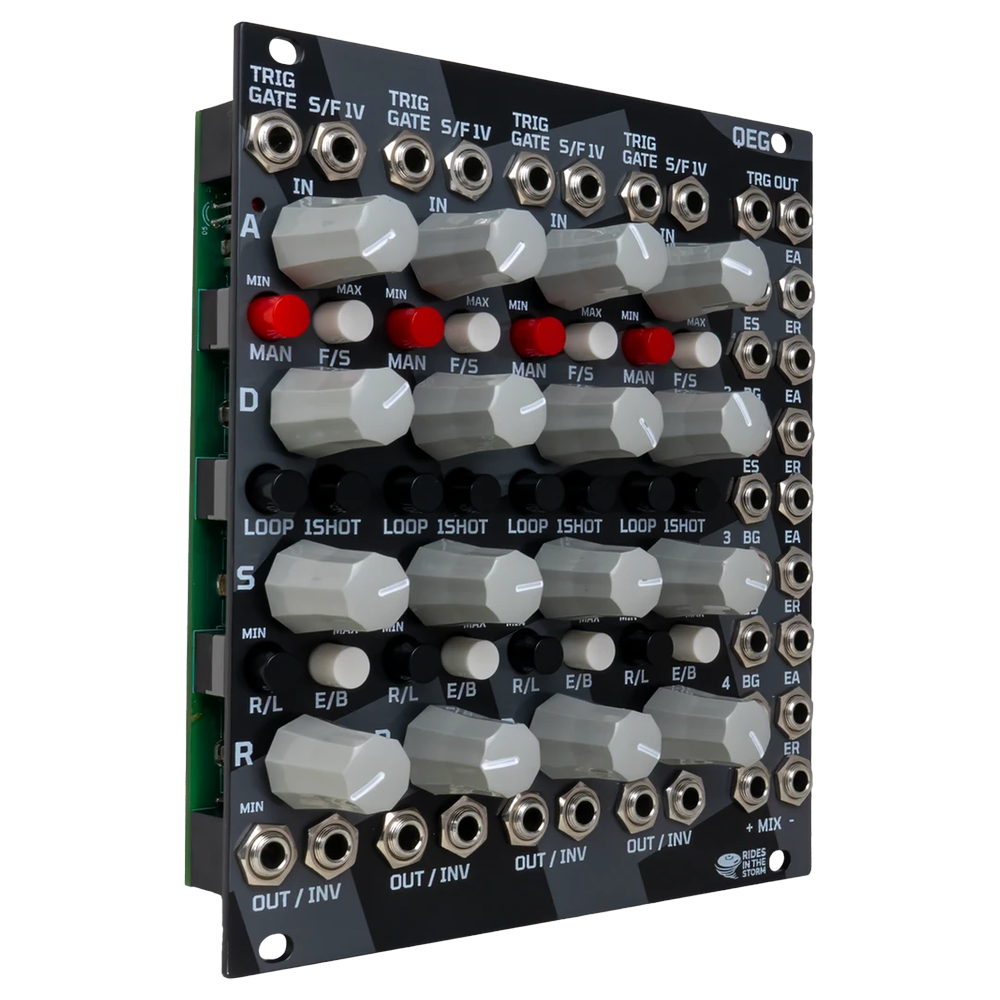

Rides In The Storm QEG

Rides In The Storm QEG

Vanlig pris 2.222,00 NOK
Vanlig pris Salgspris 2.222,00 NOK
Salg Ikke på lager
Inkl. mva.
Om modulen

Bredde: 22HP

Quad Loopable ADSR Envelope Generator with 16 Trigger and Mix Outs

  • Quad Version of FEG plus trigger outs
  • Mix Out (normal and reversed) of all envelopes for multistage applications
  • Very exponential “snappy” curve and rounded edges for a compressed “bonky” sound
  • Two time zones are offered
  • Remote control via CV of two time zones
  • Loopzone from Attack to Release
  • One shot mode for trigger signals
  • Jumper at the back for reset mode
  • Manual Trigger button
  • Normal and Inverse Output
  • Trigger Outs for each section: Begin of GATE, End of Attack, End of Sustain (GATE), End of Release

Rackspace: 22HP
Depth: 25mm
Power consumption: 120 mA (+12 V) / 100 mA (-12 V)

Vis alle detaljer
