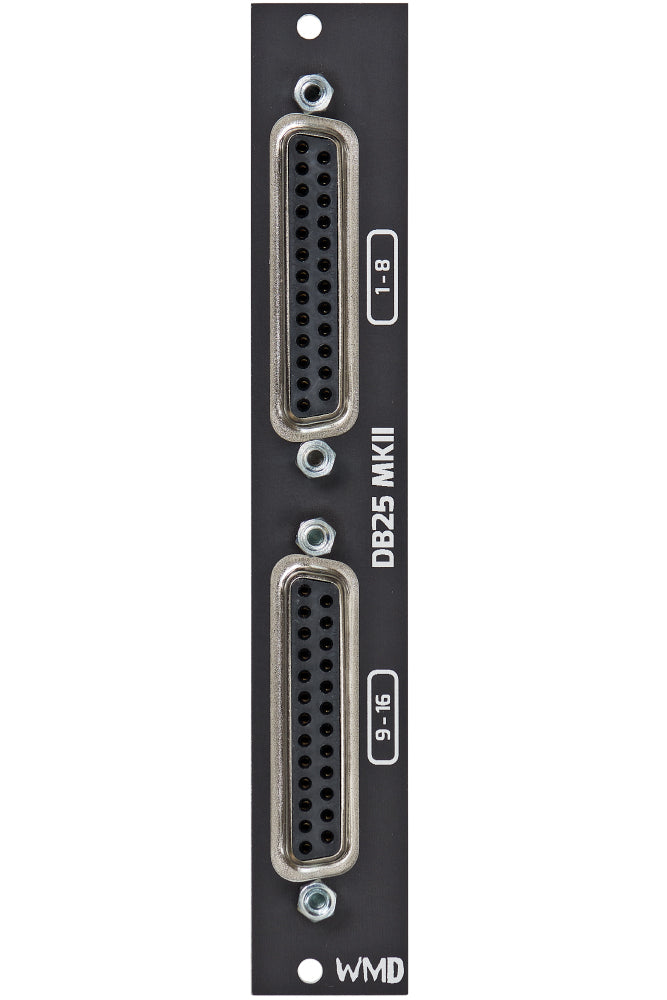

WMD PM DB25 MKII -(Balanced Out, Pre/Post Fader Exp.)

Produsentens beskrivelse:

Balanced outputs for your Performance Mixer MKII

PM DB25 MKII is an expander output for the MKII versions of the Performance Mixer and Channels.

Pre-fade and Post-fade connections are available for all channels. The DB25 has 16 outputs. All mixer channels are stereo, so one DB25 handles the main PM MKII (either pre or post), and the DB25 can handle 2x Channels (either pre or post). Simply connect the cable to the Pre or Post headers on the back of the PM MKII or Channels MKII modules to choose pre/post.

The PM MKII has an additional header with both Aux Sends, Master Bus, and Submix Bus. Connect a DB25 cable of your choice to the front connector and then straight to your DAW or recording interface.

For use with the original WMD Performance Mixer, an adapter board can be added on. Please note that depth behind panel is increased by 8mm when the adapter board is added. The original Performance Mixer still only offers Pre Fader outputs.

• Individual balanced outputs for every channel
• Pre fader outputs for non-destructive recording
• Post fader outputs for full capture of a performance (PM MKII only)
• 16 mono output channels total / 8 stereo pairs
• Rear connections keep patches clean
• 16x TI DRV135 output drivers, +4dBu nominal output level
• Compatible with original PM via adapter board (sold separately)
