ThreeTom Modular Steve's MS-22 - Dual VCF

Produsentens beskrivelse:

A dual voltage controlled filter (inspired upon a classic OTA design) with an innovative modulation matrix and one of the highest function-to-hp ratios in the land of Eurorack. This module was inspired by many pleasant chats with tech journalist Steve O'Hear.

• Dual VCF inspired by the Korg MS-20 OTA filter.
• Low-pass into high-pass configuration.
• Innovative modulation matrix allows CV control over all parameters.
• Cut-off frequencies can be linked, resulting in a band pass filter with controllable bandwidth.
• Bipolar monitoring LEDs for the LP, HP, resonance and gain CV signals.

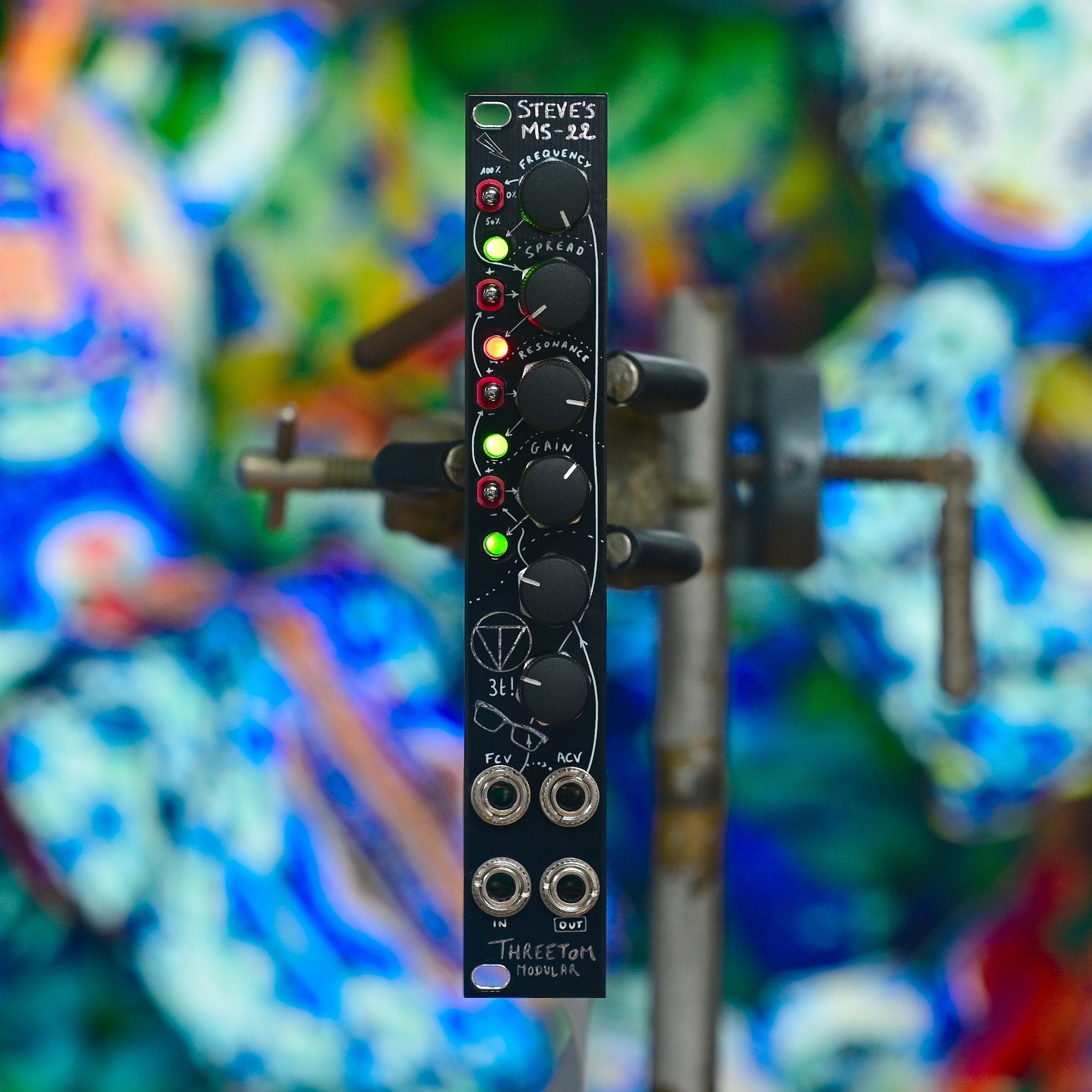

• Controls: LP cut-off frequency, HP cut-off frequency / BP bandwidth (spread), resonance, gain, FCV attenuator, ACV attenuator, LP-HP link switch (0%, 50%, 100%).

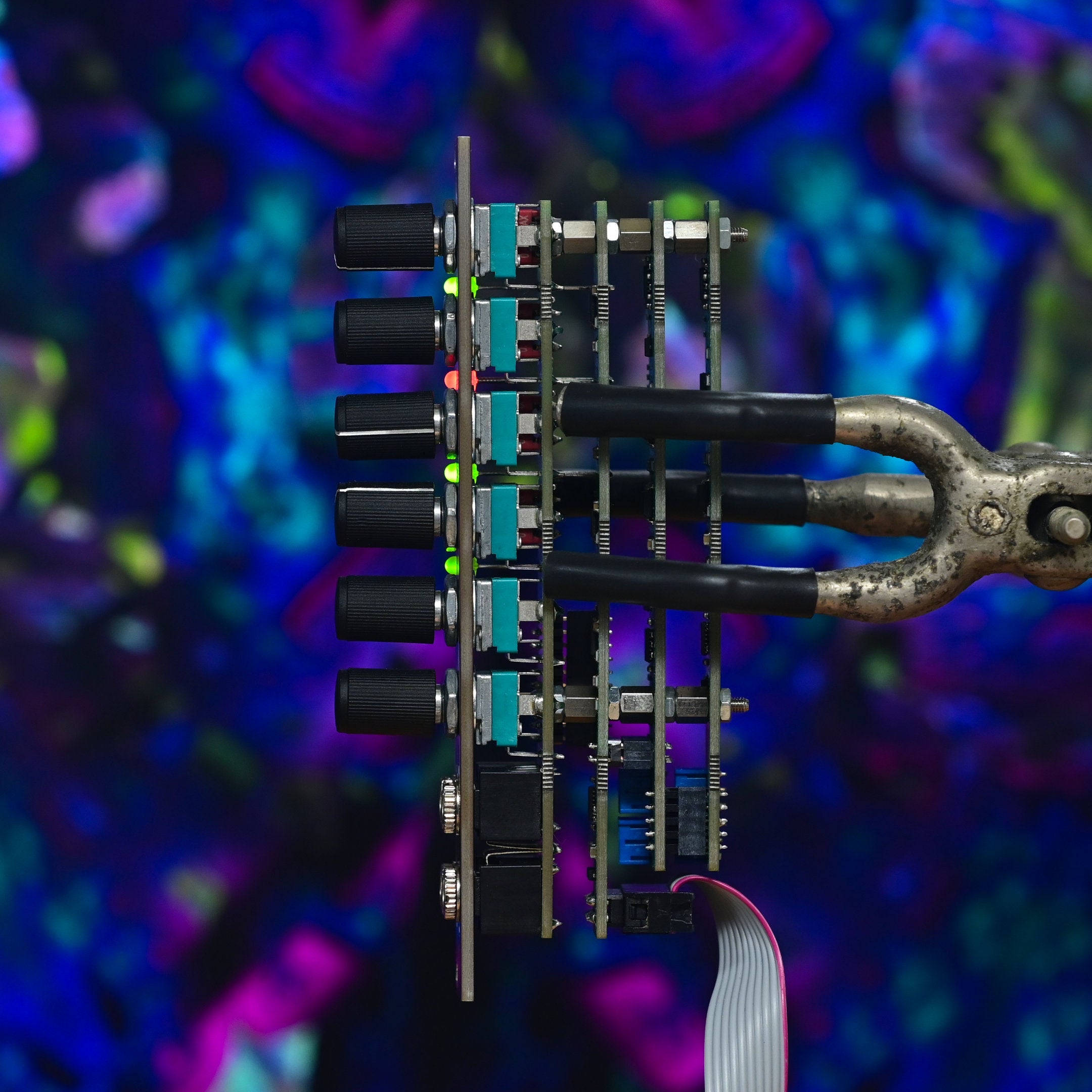

• Modulation matrix switches routing ACV to HP cut-off / spread, gain and resonance: +ACV, off, or −ACV (inverted).
• Calibration trimmers for the HP and LP filter accessible from the side of the module.
• Low frequency and audio rate modulation of all parameters.
• One of the best functionality-to-size ratios in Eurorack: 4 HP wide, 45 mm deep (skiff friendly).
• High quality aluminium knobs with grippy surface.
• 2 mm thick matte black front panel with white and metallic print.

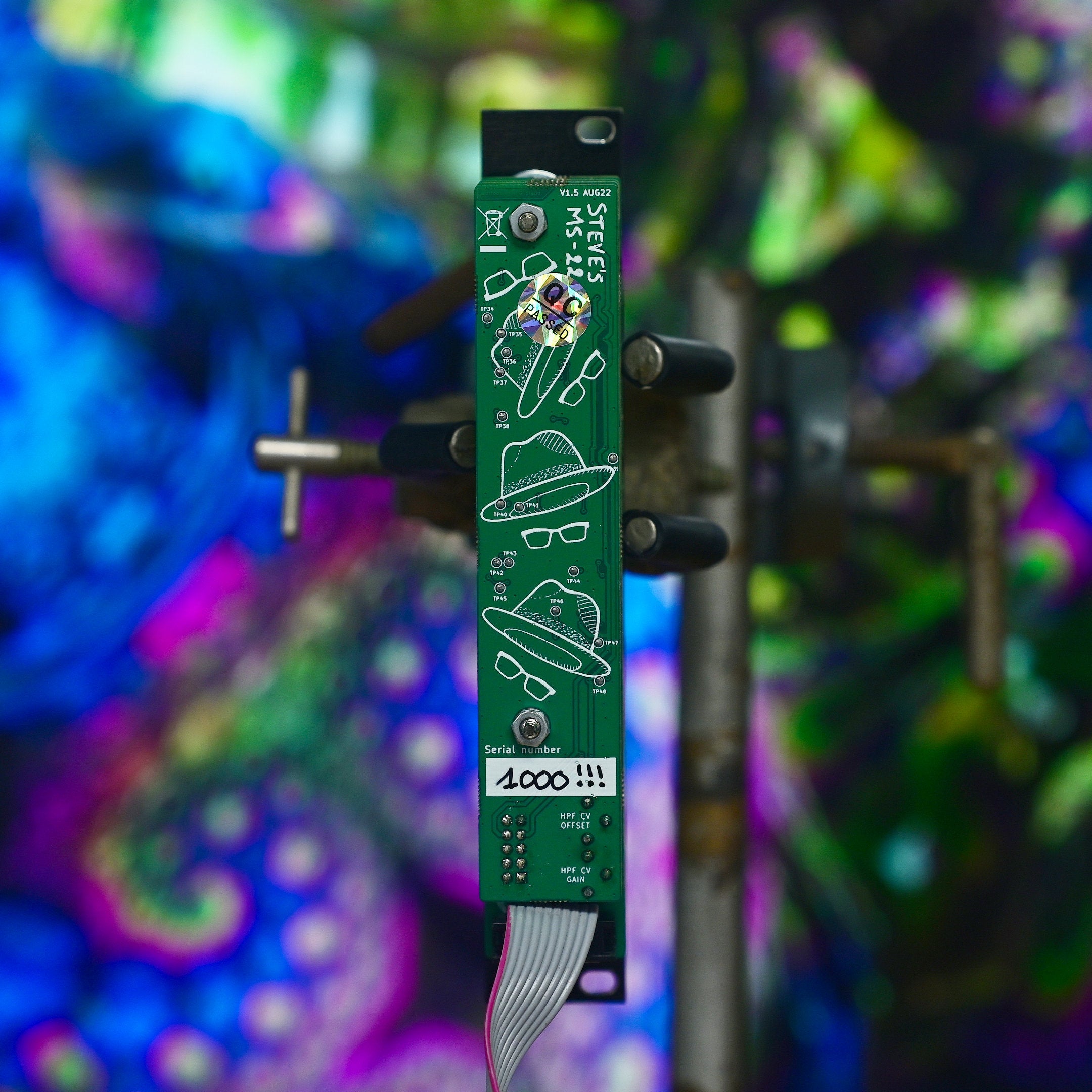

• 4-layer PCB sandwich containing 350+ components.
• Recessed power connector, avoids your power cable from adding to the module depth.
• Reverse power protection, buffered high impedance inputs, output protected by a 1K output resistor.
• Designed and made in Belgium.
