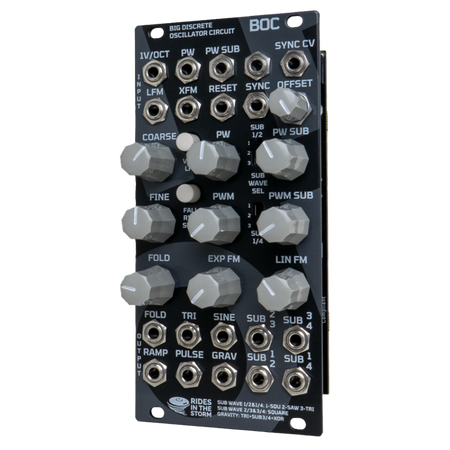

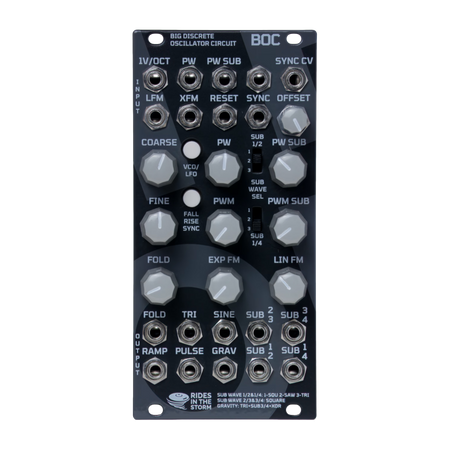

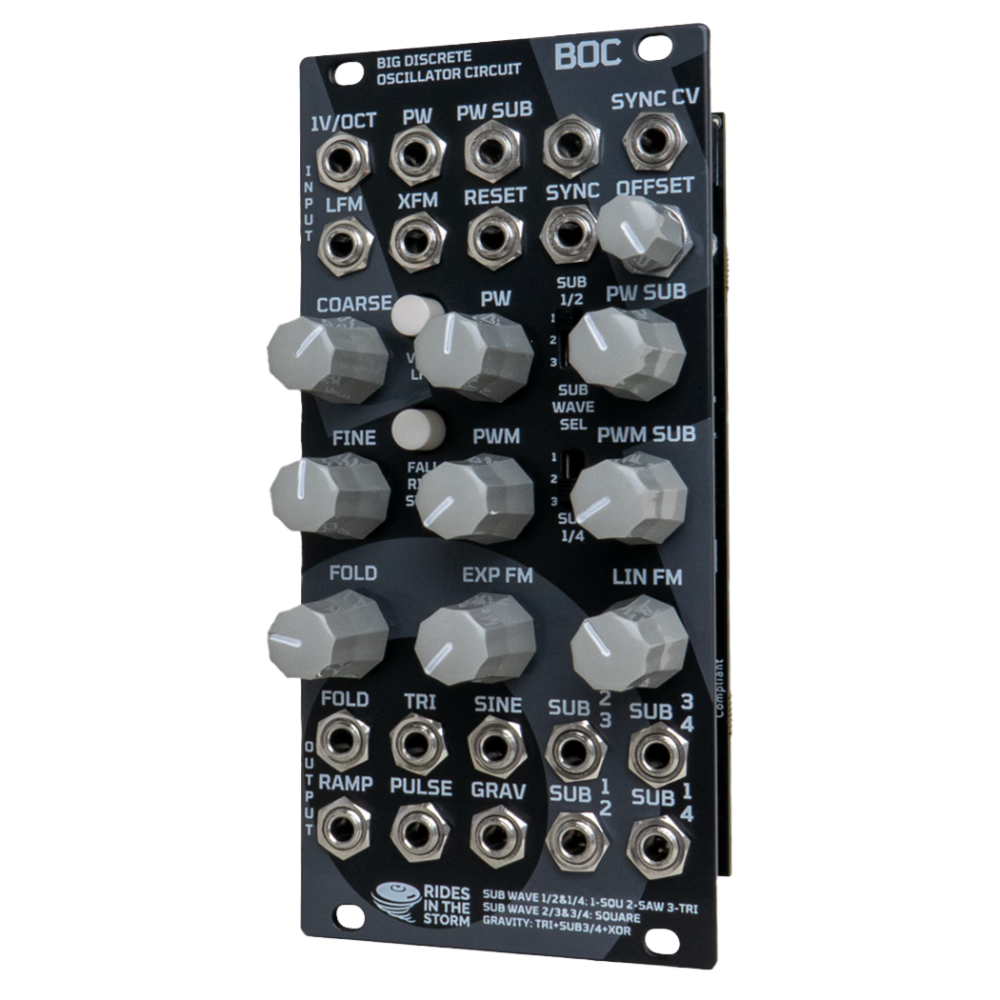

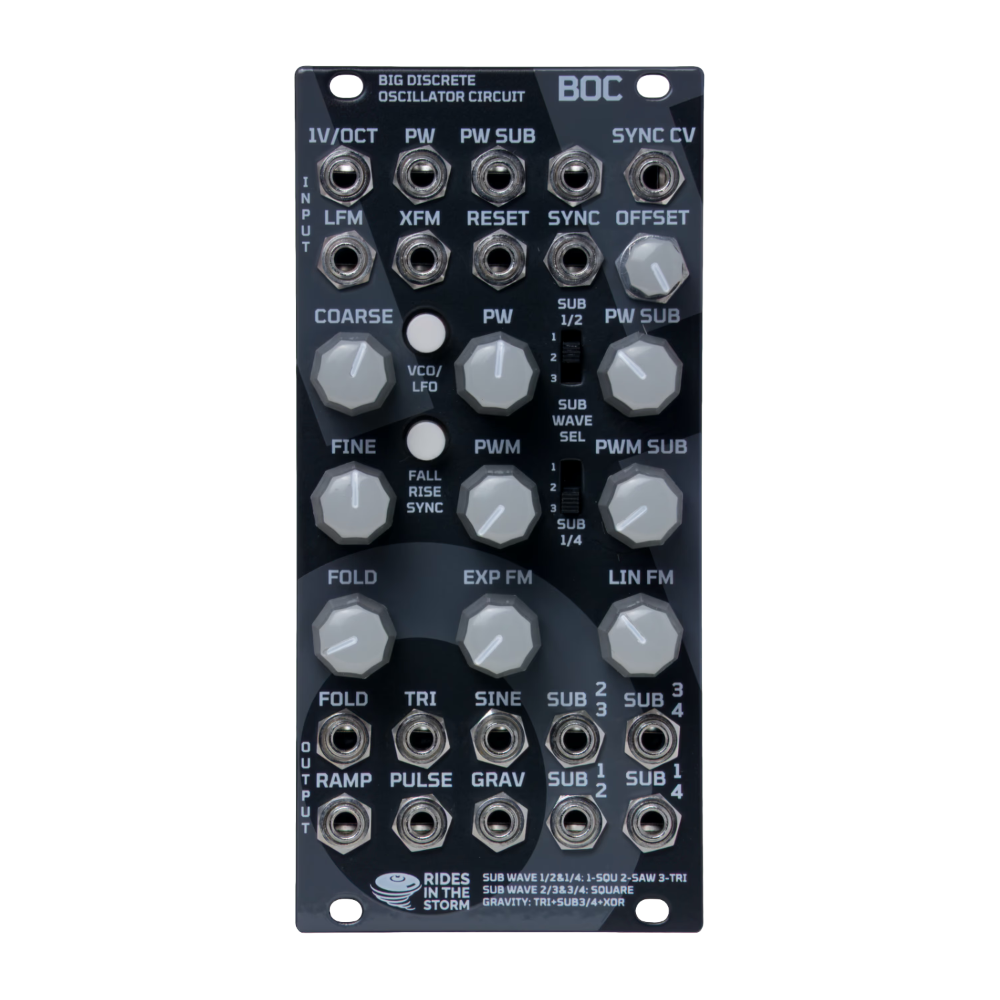

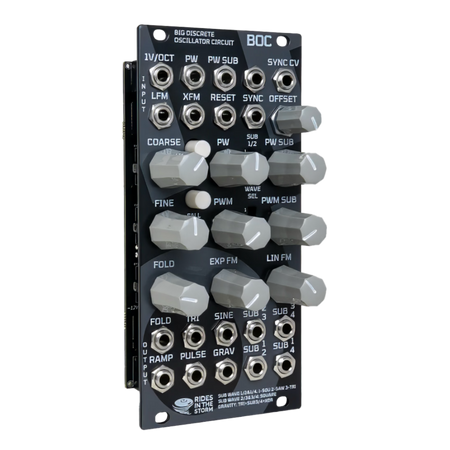

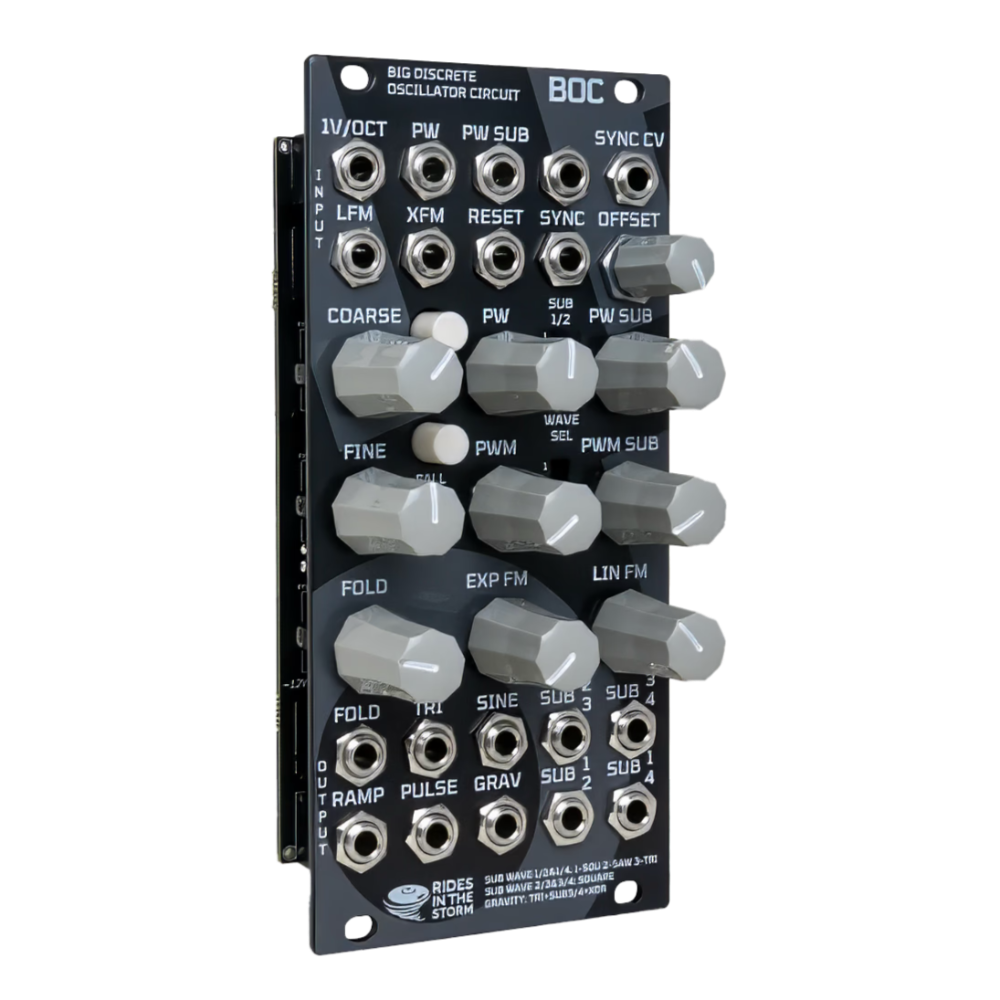

Rides In The Storm BOC - Discrete VCO

Bredde: 12HP

Discrete VCO/LFO with stable tuning, tracking and a wide spectral range

• Full sound with defined low end and superfast edges for best brilliance

• SINE, TRIANGLE, RAMP, PULSE and TRIANGLE-WAVEFOLD OUTS

• FOUR SUBOSCILLATOR OUTS: Fifth below: 2/3 (SQU) Fourth below: 3/4 (SQU) One Octave below: 1/2 (PW, SAW, TRI) Two Octave below: 1/4 (PW,SAW,TRI) GRAVITY OUT (TRI and SUB 3/4 with XOR)

• PW, PWM for core VCO and SUB 1/2 & SUB 1/4 RESET (SYNC)

• Voltage Controlled SOFTSYNC (FALL & RISE edge SYNC)

• WAVEFOLDER CV IN

• Linear FM and exponential FM with ATTENUATORS

• Jumper at the back to switch from BUS CV to PATCH CV and BUS RESET to PATCH RESET

• Screwed metal shaft potentiometer

Rackspace: 12HP
Depth: 25mm
Power consumption: +/-100mA
