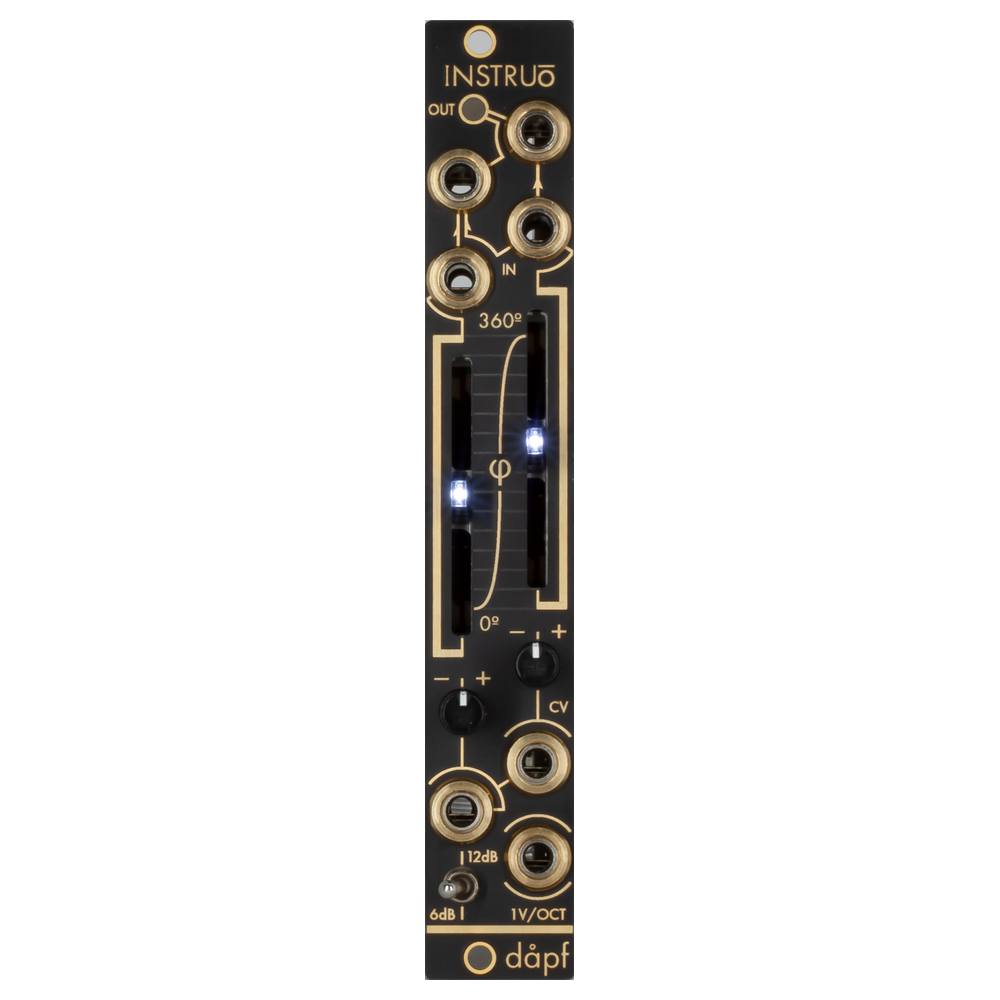

Instruo dåpf Dual All-pass filter

Om modulen

Bredde: 4HP
Dybde: 30mm
Strømforbruk: +12V: 60mA –12V: 60mA

The Instruō dåpf is a set of two analogue all-pass filters.

You might be asking yourself, “What is the point of a filter that passes everything?” All-pass filters don’t actually attenuate frequency amplitudes directly but rather alter the phase relationship of frequencies across the spectrum. All-pass filter stages appear in the vast majority of voltage-controlled filter topologies as well as serving as a core building block within DSP.

The normalled I/O of dåpf allows for cascaded or independent use of the two all-pass filter circuits, offering everything from classic phase-shifting to psychoacoustic stereo enhancement and synthetic Doppler effect.

Size

4HP
Depth: 30mm

Power

+12V: 60mA
–12V: 60mA

Features

• Two parallel all-pass filters
• Independent attenuverters for voltage control
• 1-Pole/2-Pole configuration for left channel
• Cascaded normalisation
• Global 1 volt per octave tracking
