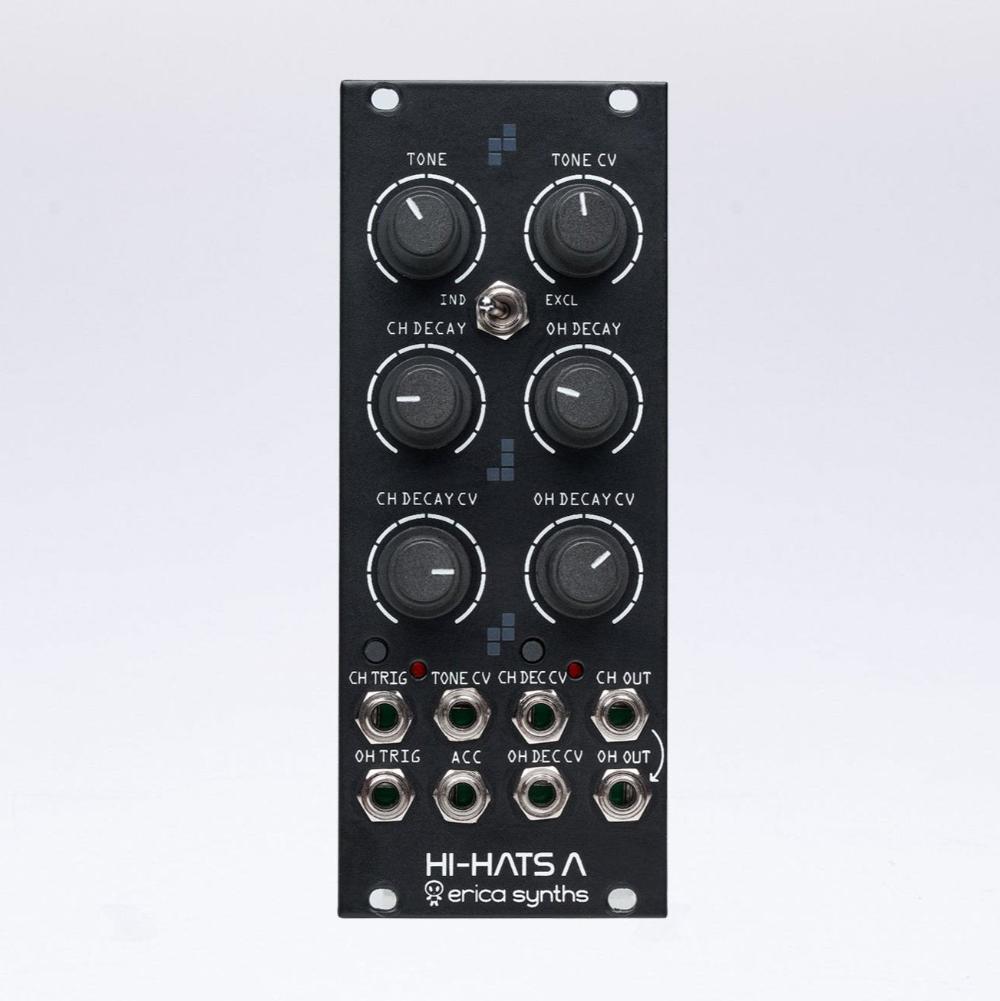

Erica Synths Hi-Hats A
Erica Synths Hi-Hats A
Vanlig pris
2.120,75 NOK
Vanlig pris
2.495,00 NOK
Salgspris
2.120,75 NOK
Enhetspris
/
per
Inkl. mva.
Kunne ikke laste inn hentetilgjengelighet
Om modulen:
Erica Synths full analogue hi-hats module with accent and manual and CV control over Tone and Decay (individual for each hi-hat) allows you to create lot of variations in hi-hats track. Closed hat and Open hat can be played independently or exclusively (Open hat will not trigger, if Closed hat is triggered). The module is developed in collaboration with French company e-licktronic.
Features
-
Tone and Decay controls
-
CV control with an attenuator over Tone and Decay
-
Independent/Exclusive switch
-
Manual trigger
- Accent for better expression
Specifications
- Decay range Closed hat: 10ms - 200ms
- Decay range Open hat: 110ms - 800ms
- Audio output level: -5…+5V
- CV level (full span): -5V - +5V
- Accent CV level: 5V
- Tigger level: 5V
- Trigger time: 1ms
- Power consumption: 33mA @ +12V, 26mA @ -12V
- Module width: 10HP
- Module depth: 50mm
