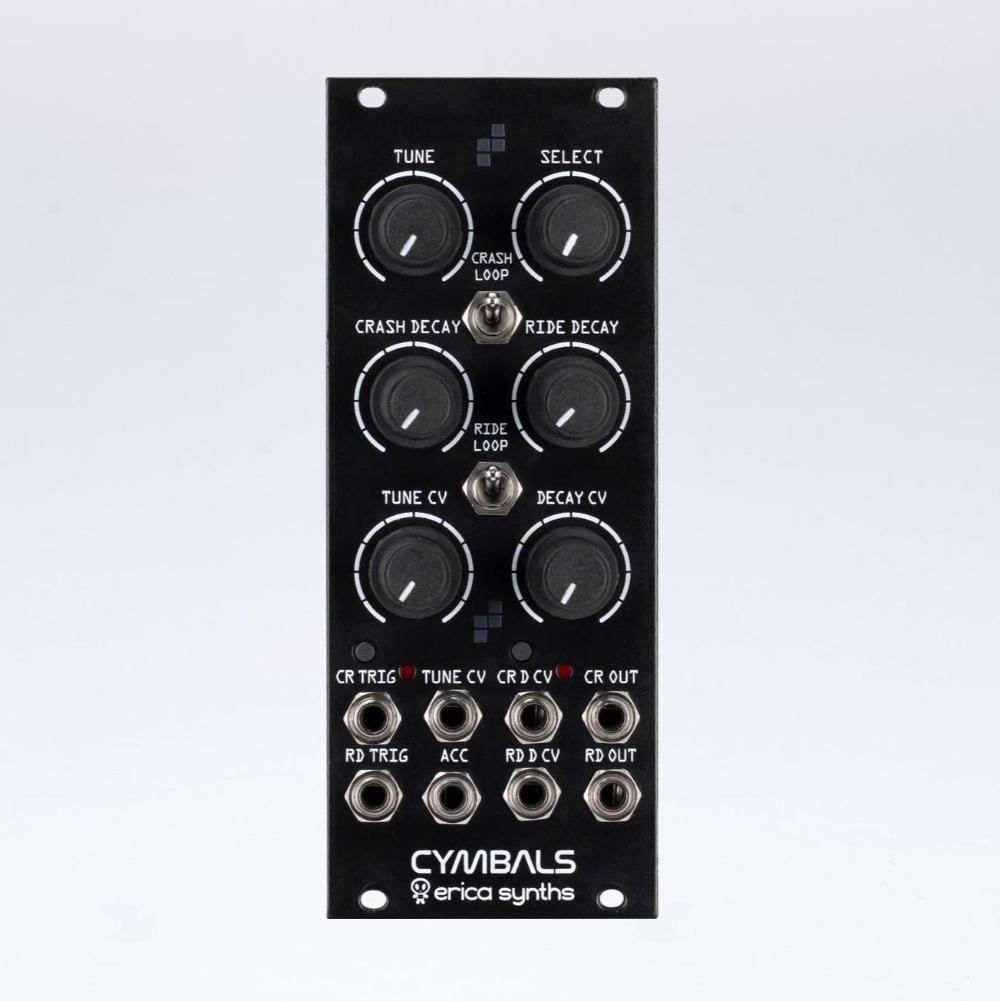

Erica Synths Cymbals

Erica Synths Cymbals

Vanlig pris 2.800,00 NOK
Vanlig pris Salgspris 2.800,00 NOK
Salg Ikke på lager
Inkl. mva.
Om modulen



Erica Synths Cymbals is a distinct topology digital/analogue module, where cymbal samples are passed thru AS3330 based VCA and controlled via envelope generators of unique design. The module features 10 sets of custom Crash and Ride cymbal samples with Tune control and individual Decay control. Accent and CV control over Tone and Decay allow you to create lot of variations in the Cymbals track. An extra feature is sample looping – when it’s on, a certain part of the sample is looped while the envelope decay is on, thus creating a distinct, delay-like effect. Cymbal samples are developed by producer and musician Nero Bellum.

Features

  • 10 sets of custom cymbal samples
  • Analogue VCA and EG
  • Tune and Decay controls
  • CV control with an attenuators over Tune and Decay
  • Sample loop for Crash and Ride
  • Manual triggers
  • Accent for better expression

Specifications

  • Audio output level: -5…+5V
  • CV level (full span): -5V - +5V
  • Accent CV level: 10V
  • Tigger level: 5V
  • Trigger time: 1ms
  • Power consumption: 95mA @ +12V, 36mA @ -12V
  • Module width: 10HP
  • Module depth: 45mm
