Doepfer A-138-6 1U Six Channel Mixer - 1U 6 channel mixer

Produsentens beskrivelse

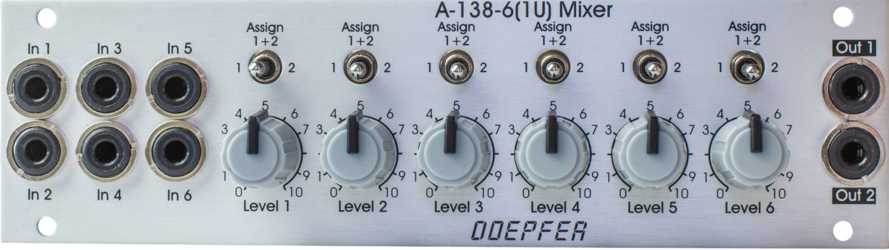

Module A-138-6(1U) is a mixer with 6 inputs and the feature to route each input to one of the two outputs or to both outputs. The module is equipped with these controls, inputs and outputs:

• 6 inputs (sockets In 1...6)
• 6 level controls (Level 1...6), linear characteristic
• 6 toggle switches (Assign) for the assignment of each input to the two outputs (switch in left position: channel 1, center position: both channels, switch in right position: channel 2)
• 2 outputs (sockets Out 1 and Out 2)

All sockets are monophonic.

By means of a small solder bridge the function of input 1 can be modified so that control Level 1 works as a DC offset generator (about 0...+5V) provided that no patch cord is plugged into socket In 1. Ex works this feature is disabled. The solder bridge is labelled PP1 and is located on the bottom side of the large PC board below the sockets In 3 and In 5.
