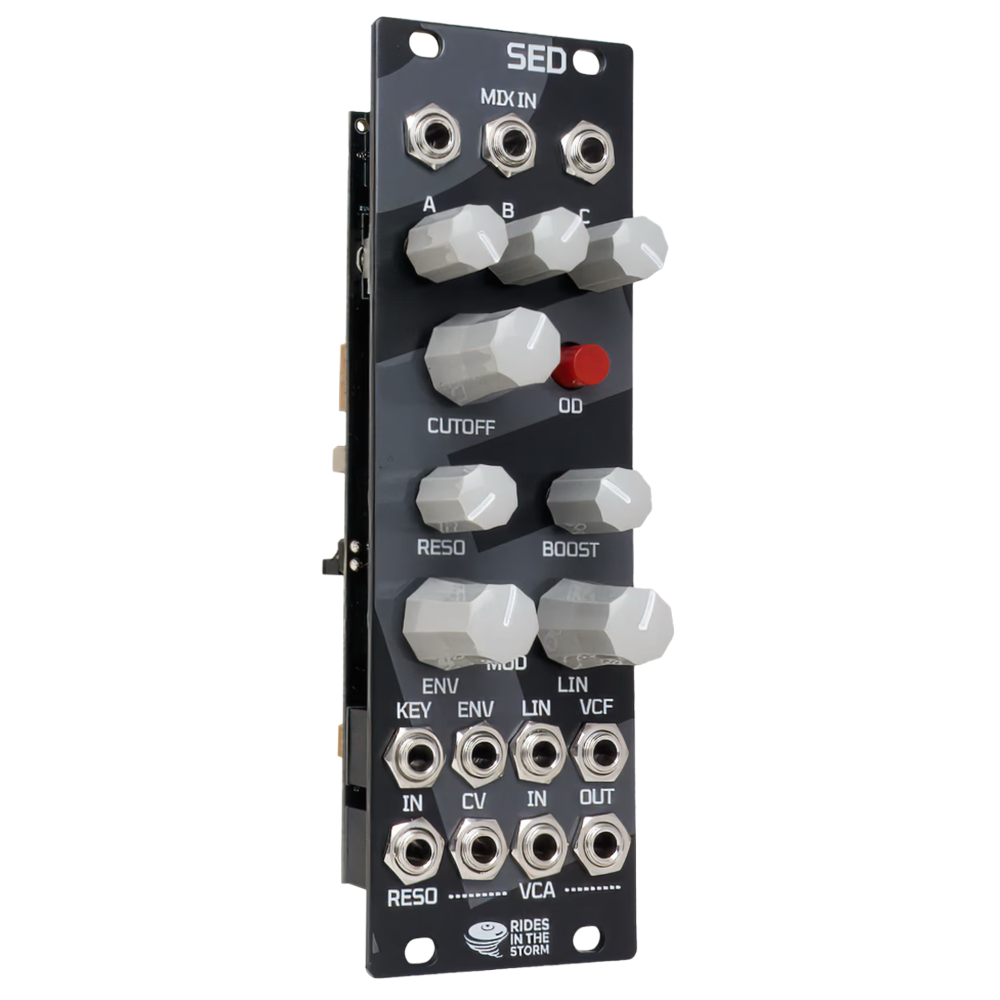

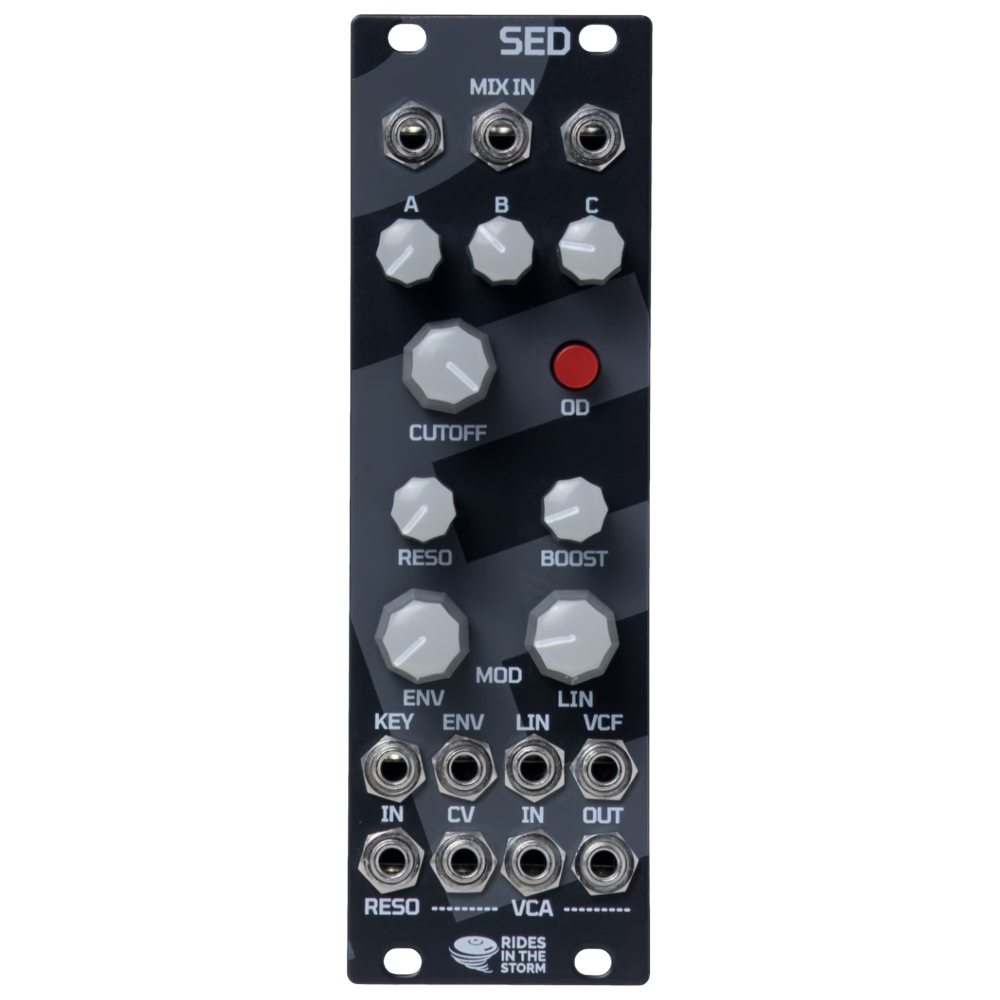

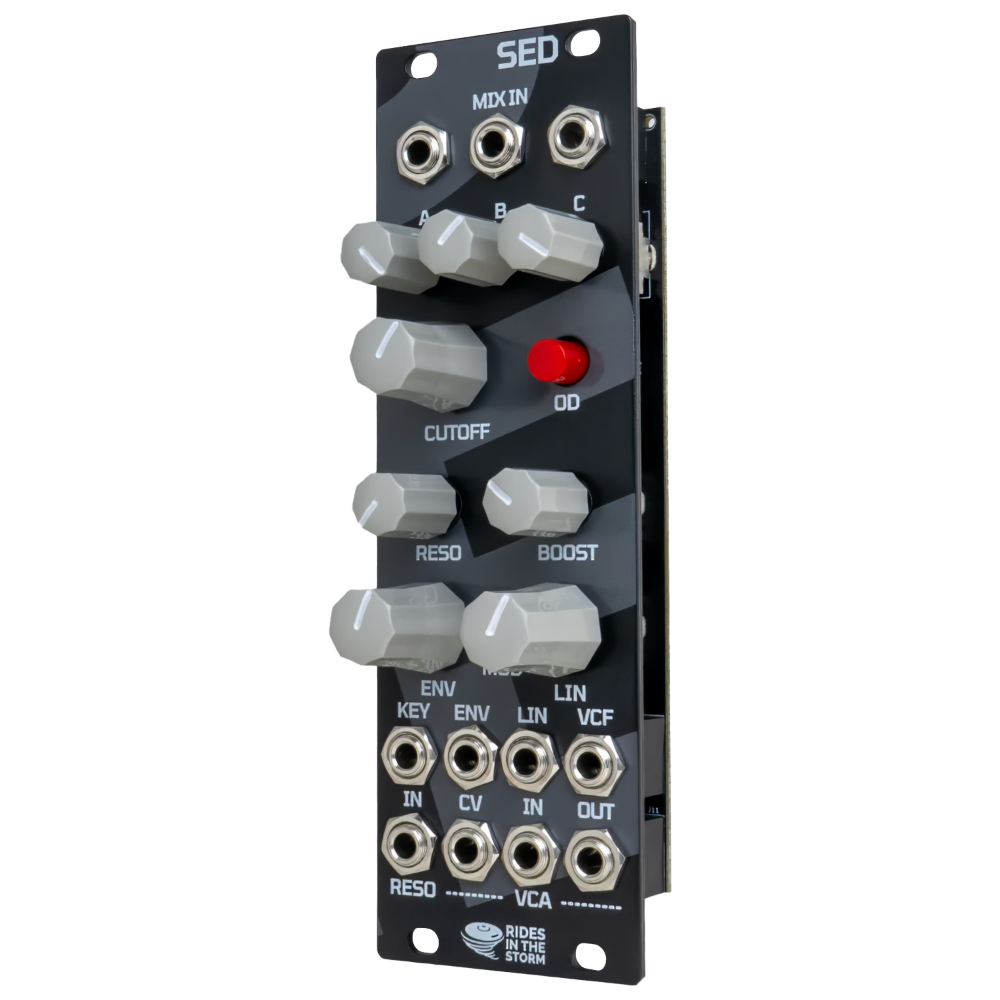

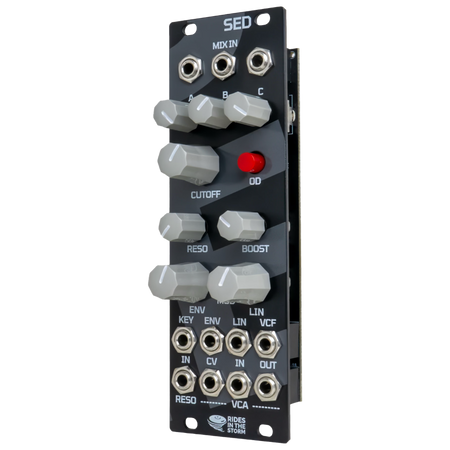

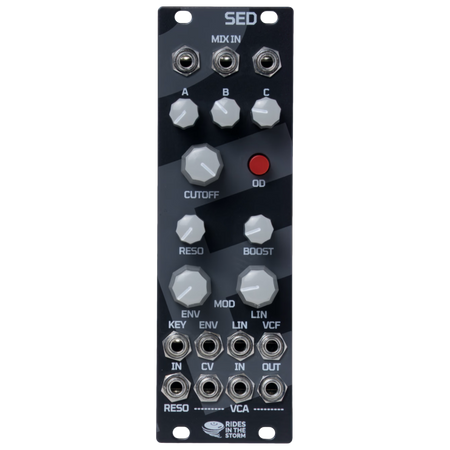

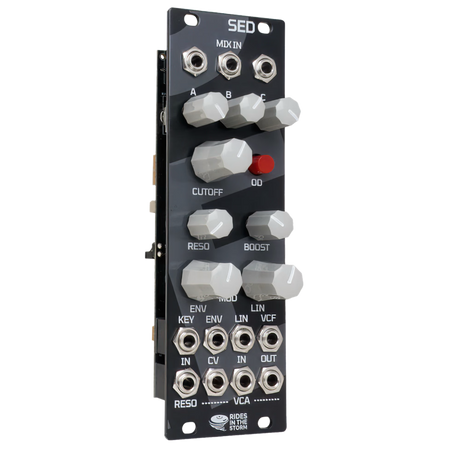

Rides In The Storm SED - Filter, 3-kanals mikser og VCA

Single ended discrete VCF and VCA plus 3 Channel Mixer

• Three Channel Mixer
• Overdrive Button and Resonance Boost level
• Discrete VCA with low noise and low distortion

• Jumper at the back to switch from 5V, 7.5V and 10V CV input for VCA

• Inputs: A, B and C Audio IN

• KEY IN (1V/Oct) for VCF Cutoff

• ADSR IN for Cutoff

• Linear FM IN for Cutoff

• CV In for Resonance and CV IN for VCA.

• Audio IN for VCA (normalized, no Input VCF goes to VCA, Input switched VCA is separately)

• VCF Audio OUT

• VCA Audio OUT
• Screwed metal shaft potentiometer

Rackspace: 8HP
Power consumption: +/- 50mA
