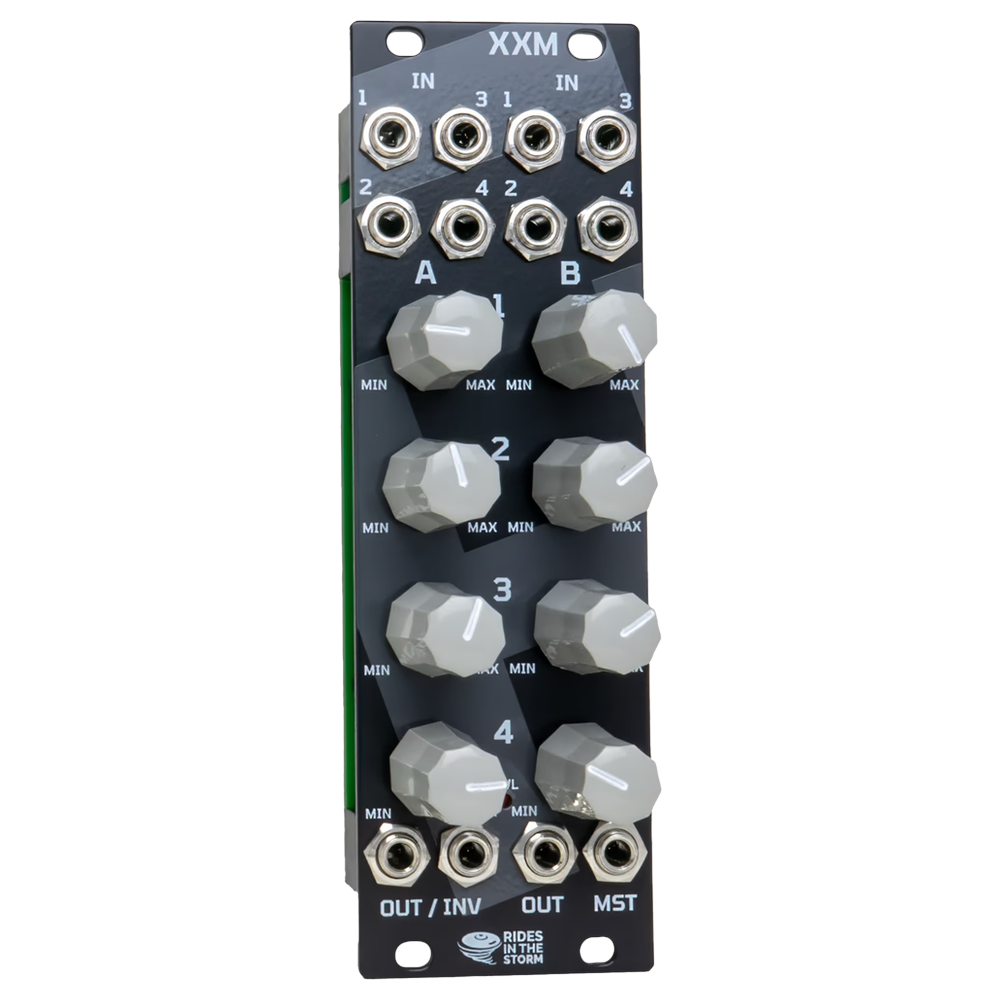

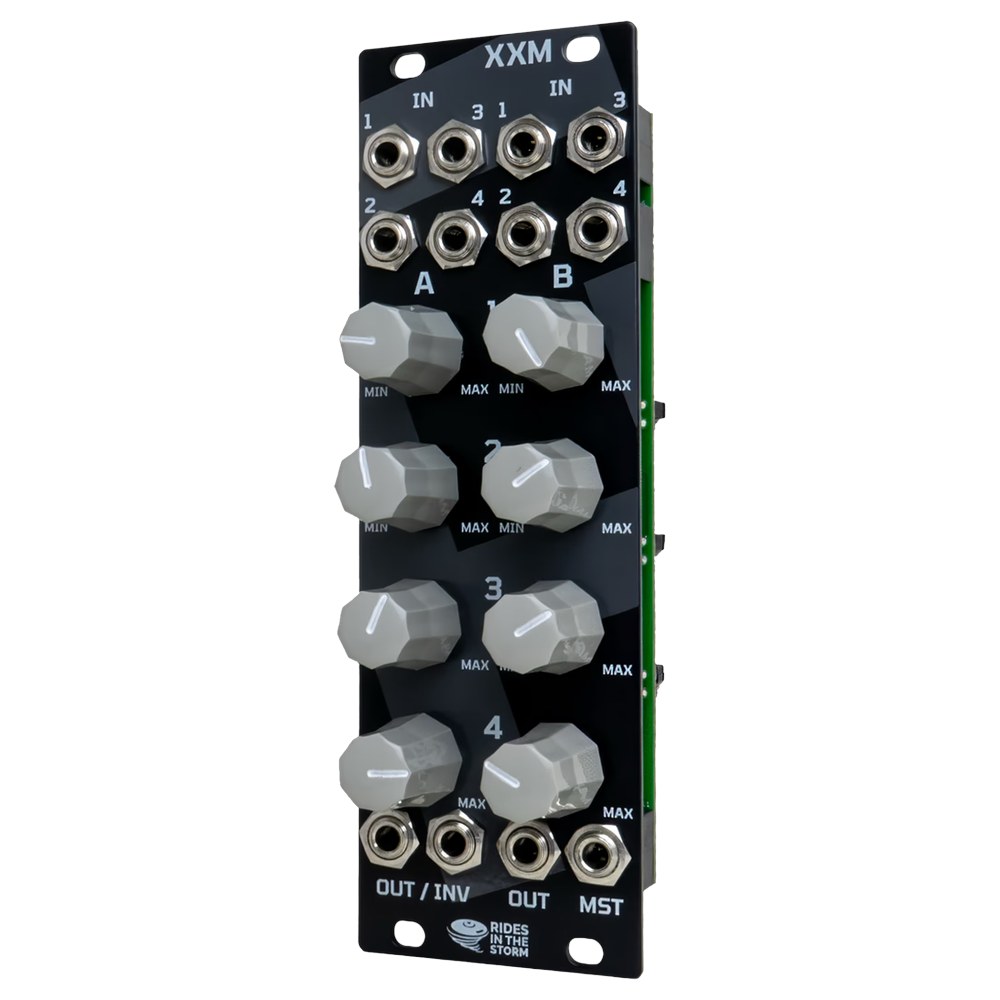

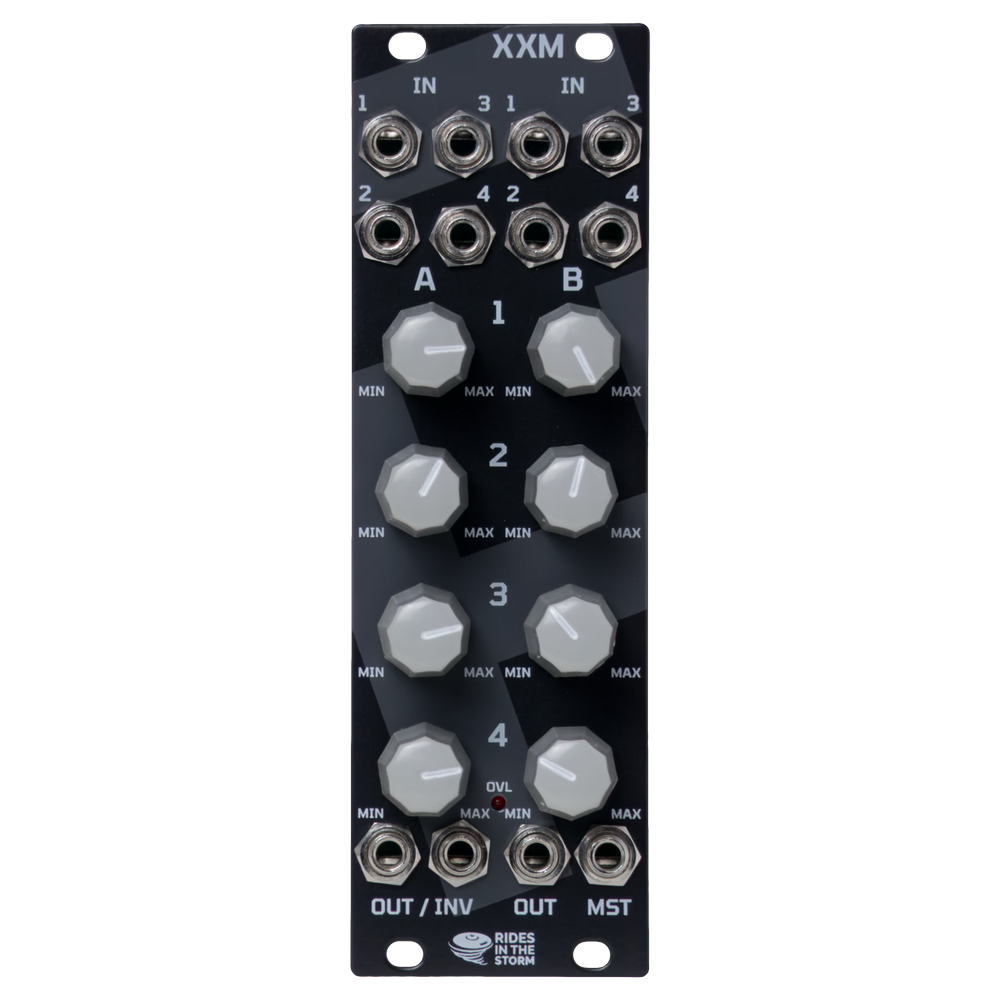

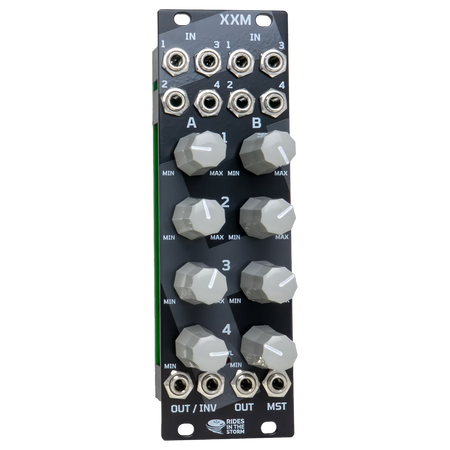

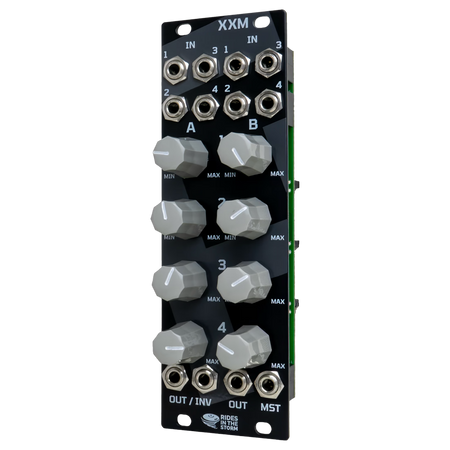

Rides In The Storm XXM - 8-kanals mono/4-kanals stereo mikser

Bredde: 8HP

2×4 Channel Mono/8 Channel Mono/4 Channel Stereo Mixer

• For audio signals and control voltages with high quality OP-Amps for superb low noise&distortion operation.

• Mixer A and Mixer B with 4 Inputs each and level control knob per Channel.

• Mixer A is DC coupled and with positive and inverted Outputs

• Mixer B switchable between AC/DC coupling via Jumper

• Common Master Output

• Screwed metal shaft Potentiometer

Rackspace: 8 HP
Depth: 25mm
Power consumption: 20mA (+12V) / 20mA (-12V)
